Your current location: Home > New Energy > Distributed Energy Power Flexible Control System
Distributed Energy Power Flexible Control System
Applications

Suitable for 380V~10kV distributed generation renewable energy stations, providing millisecond-level flexible adjustment of inverters to ensure no reverse power flow and prevent surplus electricity from entering the grid, achieving "regulation instead of curtailment" to minimize energy loss.

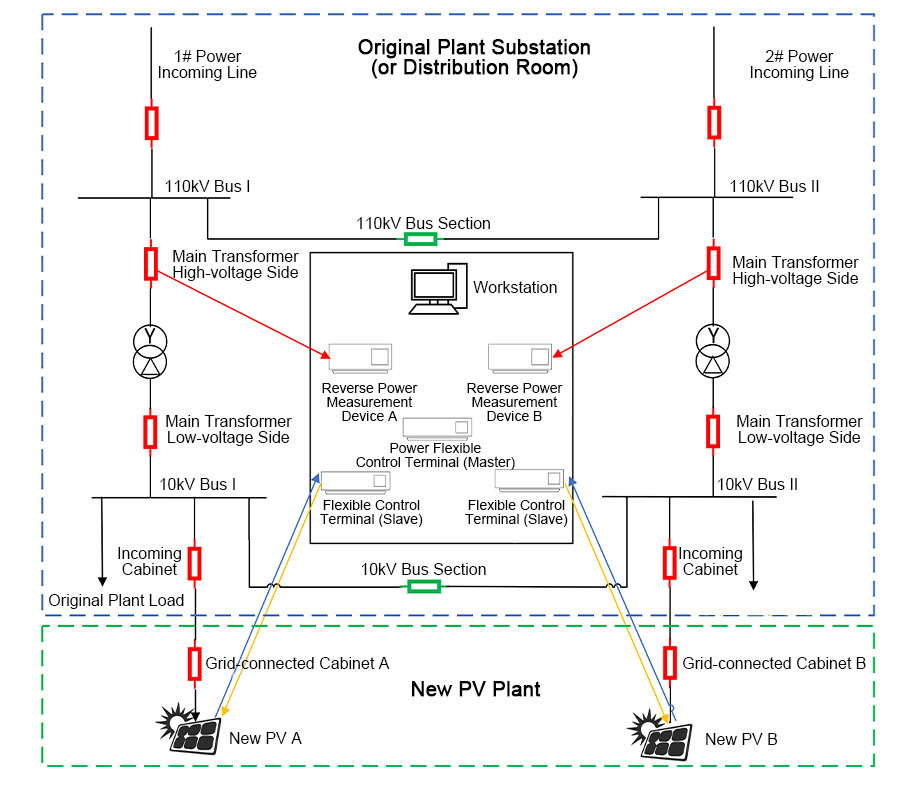

System Composition

  • The flexible power control system mainly consists of power measurement devices, power flexible control terminals, and workstations.

  • Power measurement devices collect voltage and current values at reverse power points for power calculation.

  • The power flexible control terminal utilizes real-time dynamic optimization algorithms to implement flexible power regulation, ensuring no surplus electricity is fed into the grid.

  • Workstations provide real-time dynamic data display.



Functional Features
  • Real-Time Power Monitoring
    Collects voltage and current at reverse power points, calculates power in real time to ensure accurate data.
  • Dynamic Power Regulation
    Employs millisecond-level power regulation algorithms to issue real-time control commands for precise flexible control of inverter output.
  • Reverse Power Protection Optimization
    Prevents frequent reverse power protection actions, ensures grid connection safety while reducing energy loss.
  • Intelligent Load Matching
    Monitors system-wide load and generation output in real time, intelligently optimizes generation dispatch to enhance consumption capacity.
Cases
  • Shandong Linglong Tire 11MW distributed PV power generation project
  • Inner Mongolia Xin Kuang 20.1MW distributed PV power generation project
  • Xiaomi Auto Super Factory 16.7MW distributed PV power generation project
